Handheld Thermal Imaging Monocular Thermal Imaging Scope Night
Vision Hunting Thermal Scope
Parameter:
| Detector Type | 256×192@12μm, VOx |
| Focal Length | 10mm/F1.0 |
| FOV | 17.5°×13.1° |
| Focusing | Electric Focusing |
| Screen | Full-Color LCOS Screen,1280×960 |
| Eyepiece | Exit pupil distance 17 mm, Adjustable diopter -4~＋2 |
| Magnification | 1.8X~3.6X |
| Frame Rate | 25Hz |

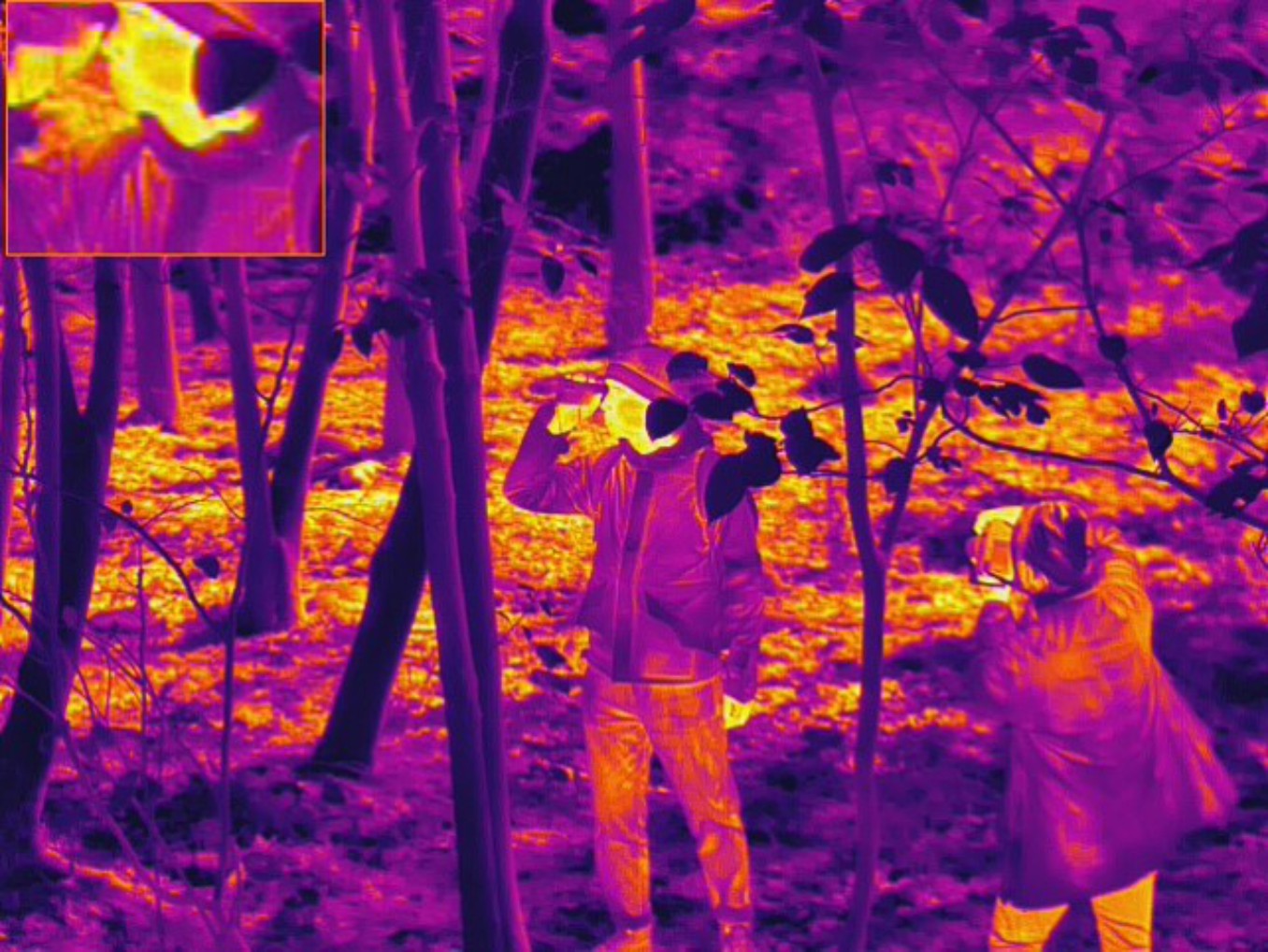

| Picture-in-picture | Picture-in-picture enlarged image is displayed on the upper left,
upper middle or upper right |
| Hotspot Tracking | √ |
| WIFI/APP | Connect App (IOS & Android) via WIFI to realize remote control,
live image and video transmission |
| Battery Type | Removable Standard 18650 Li-ion battery x1 |
| Working Time | ≥8h |
| USB/Video Output | TYPE C(USB 2.0 Standard)Interface for charging, data transmission
and simulation video output |
| Laser Indicator | Yes, Distance within 200m |
| Operating Temperature | -10°C～50°C |
| Encapsulation | IP66,1-meter drop test |
| Certificate | UN38.3 (Battery certificate), RoHS, CE, FCC, EAC |
| Weight | 360g |
| Dimensions | 143mm×45mm×73mm |
Features:
1. Tiny And Powerful
Lightweight body, which can be controlled by one hand, comfortable
to hold, no burden to carry and explore
2. Simple and easy to use,Extremely flexible control
• Follow the design of traditional optical equipment. The
appearance and operation are meet with the traditional user habits
• Simple operation and easy to use
3. Boot up in 2 Seconds Open your thermal imaging horizon Immediately
The device has entered working mode by touching the power
button,which is convenient for you to explore outdoors efficiently
4. Image Details Boost Perception is everything
• High Sensitivity Self-Developed VOx Infrared Detector, Provide
clearly and detailed thermal image
• 1280 x 960 High-resolution LCOS Display. Vivid Colors for a
comfort observation
5. Multiple Color Palettes to Highlight the Target
• Six color palettes: white hot, black hot, red hot, iron red, blue
heat.
• Support one-button switch to identify the location of the target
instantly, helping to achieve all-weather observations.
