    TS450 Thermal Imaging Gun Sight With 400*300 IR Resolution And 50mm Focal Length

    Ask Lasest Price
    Brand Name : OEM, ODM All Available
    Certification : CE,FC,RoHS
    Delivery Time : 3~7
    Payment Terms : T/T. L/C, Western Union, Money Gram
    Supply Ability : 30000PCS/Month
    Model Number : TS450
    • Product Details
    • Company Profile

    TS450 Thermal Imaging Gun Sight With 400*300 IR Resolution And 50mm Focal Length

    TS450 Thermal Imaging Gun Sight With 400*300 IR Resolution And 50mm Focal Length

    Parameter:

    ModelTS425TS435TS450
    Detector
    Detector Type400×300 @17μm, VOx
    Spectral8μm~14μm
    NETD≤50mk
    Lens
    Focal Length25mm F1.135mm F1.250mm F1.2
    FocusingManual Focus
    FOV14.9°×11.2°10.7°×8.0°7.5°×5.6°
    Display
    DisplayColor 0.39-inch OLED Display, 1024×768
    EyepieceExit pupil distance 48mm, eyepiece magnification 14×
    Magnification1.6~6.4×2.3~9.2×3.3~13.2×
    Video Output SystemPAL 50Hz
    External Video DisplayFull color video output by external interface, with menu
    Imaging
    Frame Rate50Hz
    Digital Zoom2×,4×

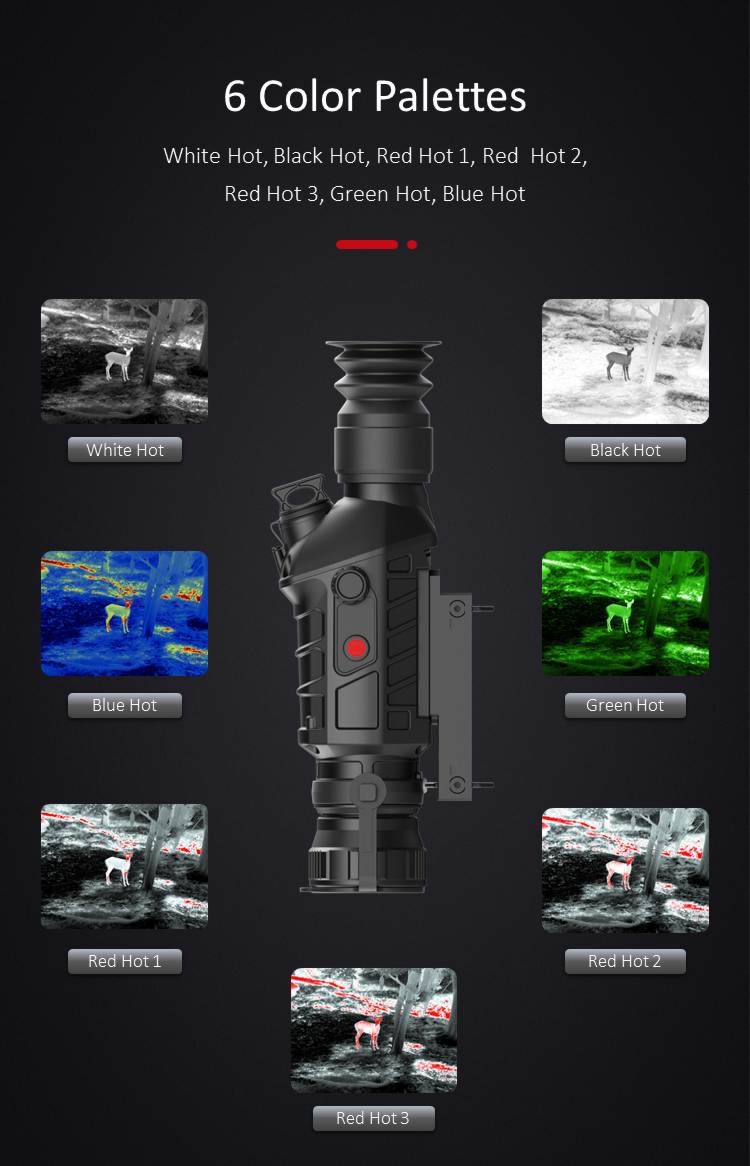

    Color PalettesWhite Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot
    Picture-in-pictureOn/off,the position is adjustable
    Functions
    hotspot trackingYes
    Compensation ModesAuto Compensation / Shutter Compensation / Scene Compensation
    Calibration25m/50m/100m
    Stadiametric rangefinder1.8m/0.5m/0.25m
    Gun Types Selection6 Types
    Power Supply
    Battery TypeInterchangeable Li-ion battery 18650 x 1, Non-rechargeable on the device
    Battery Operating Time≥3H(Standard low temp battery,Observation status only)
    ≥5H(Panasonic 3400mah standard 18650 battery,Observation status only)
    Interface
    Video InterfaceLemo
    Environmental Characteristics
    Operating Temperature-40°C-50°C
    Shock500G/1ms
    EncapsulationIP67
    CertificateRoHS,CE
    Weight & Dimensions
    Weight(excl battery)660g660g720g
    Dimensions230mm×90mm×75mm230mm×90mm×75mm250mm×90mm×75mm
    Package Contents
    StandardLens cap,battery,Charger,Video cable,
    Pick-up gun rack,Hard transport case,User Manual
    Detection Range
    Human:1.8m×0.5m700m1000m1400m
    Vehicle:2.3m×2.3m1700m2400m3000m
    Recognition Range
    Human:1.8m×0.5m350m500m700m
    Vehicle:2.3m×2.3m700m1000m1400m





    Features:

    1 With a 400x300 pixel TEC metal-encapsulated thermal detector, it can detect further distances and capture sharper, vivid images.

    2. The TS thermal sight also has the characteristics of small size, waterproof and dustproof, strong shock resistance, strong and durable, and can perform well in any bad weather.
