Safety Infrared 1x24 Military Helmet Mounted Night Vision Goggle
NVG10
Parameter:
MODEL: NVG10 |
Optical zoom: 1x |
Digital zoom: 3x |
Objective lens diameter: 24mm |
Eyepiece type: rubber, no folded, manual adjust |
Field of view: 25.5°x14.5° |
Diopter adjust: ±5 |
Focal length: 20mm |
Focal adjust: manual adjust by objective lens |
Minimum Focus Distance: 250mm |
Eyerelief: 20mm --25mm |
Exit pupil diameter : 7mm |
Lens coating: ultra wide band infared films |
Optic resolution: ≤11” |
Camera sensor: CMOS |
Camera resolution: 1280X720 |
Photosensitive size: 1/2" |
Infrared light wave: 850nm/940nm |
Minimum illumination: 10 -4 LUX |
Infrared power: 1W |
Infrared lamp illumination adjustment: 3-level |
Display screen isolution: 1024x768 |
Display size/type: 0.51 OLED |
White balance: Auto |
Image color mode: black, white, green |
Operating temperature: -40℃ - ＋55℃ |
Operating humidity: 0-70% |
Storage Temperature: -50℃ - ＋70℃ |
Working voltage: 3.6V - 4.2V |
Battery type: 18650x1 |
Audio and video recording function: Yes |
Screen brightness adjustment function: Yes |
Infrared lamp brightness adjustment function: Yes |
Photography/ video/ playback and delete functions: Yes |
Time set: Yes |
Composition of Material: Military grade enhanced ABS+PC |
Product size(mm): 100x78x65 |
Weight: 237g |
Main Features
* Military grade enhanced ABS+PC materials Helmet Mounted Night
Vision Monocular.
* Ultra wide band infared films increase light transmission and
provide clear images. Perfect for hunting, shooting, scouting game,
security, nighttime navigation.
* IP66 Waterproof function.
Application of 1x24 Night Vision Monocular:
Nature reserves, forestry, wild insurance, scientific research
institutes, forest farms, wetlands, forest parks and other
monitoring wildlife, anti-poaching.
Field observation and rescue, outdoor tourism for mountain forest
cave exploration enthusiasts, camping photo-taking and monitoring.
Forestry management, geological exploration, oil production units,
airport management, large gathering management unit / railway and
port remote night observation and photographing.
[High resolution] CMOS sensor offers clear view up to 3X magnification, provides
high resolution colorful images.Infrared illuminators allow
observers to see clearly in total darkness.
[Clear Vision] Built in infrared illuminator, the visual range can reach 100-180
meters when there is light; it is used in the daytime or at night
(turn off the infrared when using in the daytime);

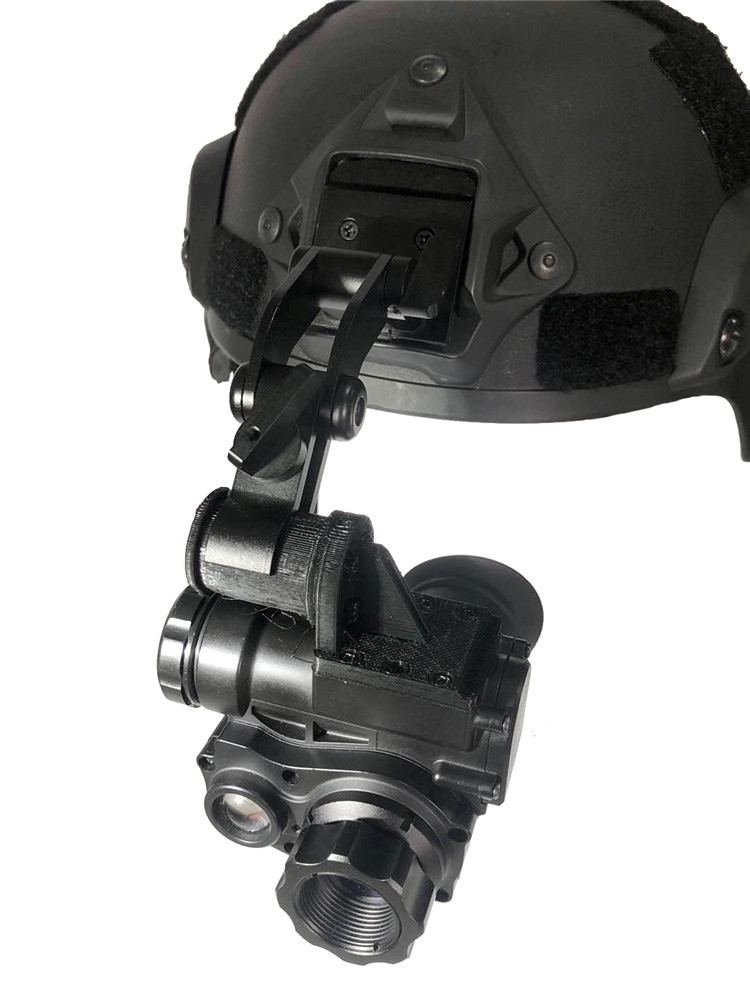

[High usability] Helmet attachable;Portable pocket-sized design.
[Broad vision] Wide angle design excellent Performance when observing moving
targets.New generation of image enhancement tube, greatly enhance
the performance of the instrument,can also see the target in almost
black.
[Products Include] Night vision device * 1, J arm * 1, helmet mount bracket* 1
(without helmet), bag * 1
