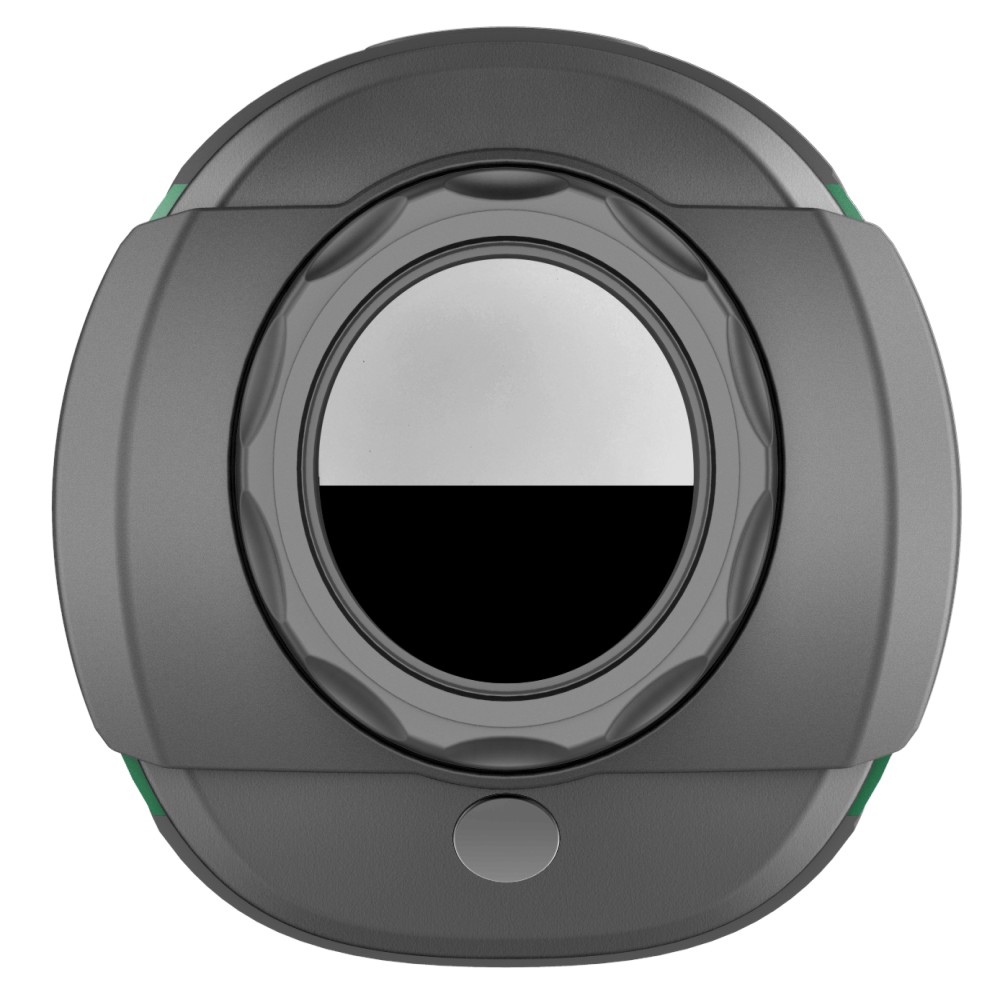

Infrared Thermal Imaging Night Vision High Frame Rate 510 N1 Handheld

Ask Lasest Price
Brand Name :	OEM, ODM All Available
Certification :	CE,FC,RoHS
Delivery Time :	3~7
Payment Terms :	T/T. L/C, Western Union, Money Gram
Supply Ability :	30000PCS/Month
Model Number :	510IR N1

Add to Cart

Product Details
Company Profile

Infrared Thermal Imaging Night Vision High Frame Rate 510 N1 Handheld

Infrared Thermal Imaging Night Vision High Frame Rate 510 N1 Handheld Thermal Imaging

Parameter:

	IR510 N1	IR510 N1 WIFI	IR510 N2	IR510 N2 WIFI
Detector
Detector Type	400×300@17μm
Spectral Range	8μm~14μm
Lens
Focus	19mm		25mm
Focusing	free		Manual
FOV	19.0°×14.5°		14.6°×11.1°
Screen	Colorful 0.2″LCOS
Viewfinder	Monocular, diopter adjustable±4
Frame	50Hz
Digital Zoom	×2, ×4
Color Palette	Black hot, white hot, red hot 1, red hot 2, red hot 3
Fuctions
Photograph	×	×	×	×
Additional functions	Illuminator or laser pointer	Illuminator or laser pointer	Illuminator or laser pointer	Illuminator or laser pointer



	or neither	or neither	or neither	or neither
Cross cursor	√	√	√	√
Image enhancement	×	√	×	√
Wi-Fi	×	√	×	√
Zoom	√	√	√	√
Freeze	√	×	√	×
Charging indicator	√	√	√	√
Active indicator	√	√	×	√
Power
Battery	Internal Li-ion battery,3.7V,3200mAh
Working Time	≥5h
Adapter	Standard USB power adapter, max 10W
Interface
USB	Charging
Video Output	MCX Connector,PAL/NTSC
Environment Characteristics
Working Temperature	-10℃~50℃
Storage Temperature	-30℃~60℃
Humidity	10%~95%
Shock	10Hz~150Hz~10Hz 0.15mm IEC60068-2-6
Encapsulation	IP66
Drop	1m drop		N/A
Physical Parameter
Weight	350g		375g
Size	160mm×67mm×62mm		168mm×67mm×62mm
Package
Standard accessories	thermal imager/ power adapter/ USB cable/ video cable



	/lens cap/ wrist strap/ shoulder strap/ soft drawstring bag/ user manual
Optional accessories	N/A		40mm extender lens(FOV:9.3°×7.0°)
Detection Range
Human:1.8m×0.5m	500m		700m
Vehicle:2.3m×2.3m	1300m		1700m
Recognition Range
Human:1.8m×0.5m	300m		350m
Vehicle:2.3m×2.3m	500m		700m

Features:

1.Wi-Fi for remote control,to display synchronously, takephotos and videos
2.lmaging better,detect further ,highlight the target easier
3.Easy operation with only three buttons Silent and lightproof design to prevent exposure
4.Built-in battery life up to 5h, extemal power supply available
5.lluminator or laser pointer or neither
