Track IR 25mm Night Vision Thermal Imaging Monocular IP66

Ask Lasest Price
Brand Name :	OEM, ODM All Available
Certification :	CE,FC,RoHS
Delivery Time :	3~7
Payment Terms :	T/T. L/C, Western Union, Money Gram
Supply Ability :	30000PCS/Month

Add to Cart

Product Details
Company Profile

Track IR 25mm Night Vision Thermal Imaging Monocular IP66

Track IR 25mm Handheld Thermal Imaging Night Visionwith IP66 Waterproof

Product parameters

Model	TrackIR 25mm	TrackIR 35mm	TrackIR 50mm
Detector
Detector Type	400×300 @17μm, VOx
Spectral	8μm～14μm
NETD	≤50mk
Lens
Focal Length	25mm/F1.1	35mm/F1.2	50mm/F1.2
Focusing	Manual Focus
FOV	15.4°×11.6°	11.1°×8.3°	7.8°×5.8°
Display
Screen	1280×960 , 0.4 inch,Color LCOS Display
Eyepiece	Monocular, Exit pupil≥10mm, Adjustable diopter-4~＋2
Magnification	1.7~6.8	2.3~9.2	3.3~13.2
Imaging
Frame Rate	50Hz
Digital Zoom	1X~4X (Smooth zoom)
Color Palettes	White Hot, Black Hot, Iron Red, Blue Hot, Red Hot
Picture-in-picture	Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right
Functions
Photo	Yes	Yes	Yes
Video	Yes	Yes	Yes
Hotspot tracking	Yes	Yes	Yes
Stadiametric rangefinder	Yes	Yes	Yes
Wi-Fi/APP	Wi-Fi share photo and video, also can controlled by app(IOS & Android)
Power Supply
Battery Type	Internal Li-ion battery (2x18650, 6000mAh)
Working Time	≥5h
Interface
USB	TYPE C (USB 2.0 standard ) for charging, data tranmission
Video Output	Micro HDMI
External Connection	External Connection by a Picatinny rail
Memory Card	16 GB
Environmental Characteristics
Operating Temperature	-10°C～50°C
Storage Temperature	-30°C～60°C
Encapsulation	IP66,1-meter drop test
Certificate	UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
Weight & Dimensions
Weight	470g	485g	535g
Dimensions	192mm×65mm×71mm		214mm×65mm×71mm
Package Contents
Standard	Power adapter,USB cable,Micro HDMI cable,Lens cover,Wrist strap, Shoulder strap,Lining package,Quick Start Guide
Optional	External Picatinny rail, External screen and etc…

Product Description

Track IR is new launched handheld thermal imaging monocular designed for professional hunters.
With 1280*960 HD display, it provides adaptable and excellent thermal imaging in any conditions.
Support smooth zoom, built-in stadiametric rangefinder, image quality adjustment, picture-in-picture functions.
At a high frame rate of 50Hz, TrackIR captures sharp thermal imaging throughout dynamic and rapid motion in distance.
TrackIR also supports connecting accessories to realize more functions.

Main Features

* 1280×960 HD display for better comfort of viewing
* >5 hours battery working time * Mobile-friendly APP for Remote Control and Steaming

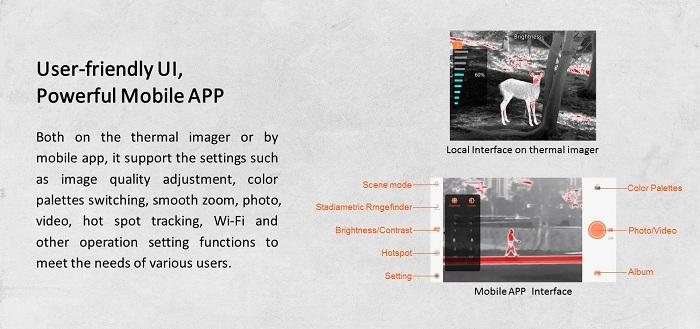

* User-friendly UI with quick menu, easy to operate
* Multiple Color Palettes for good vision in diverse conditions
* Support smooth zoom, built-in stadiametric rangefinder and more
* Can connect external mobile power supply and more
